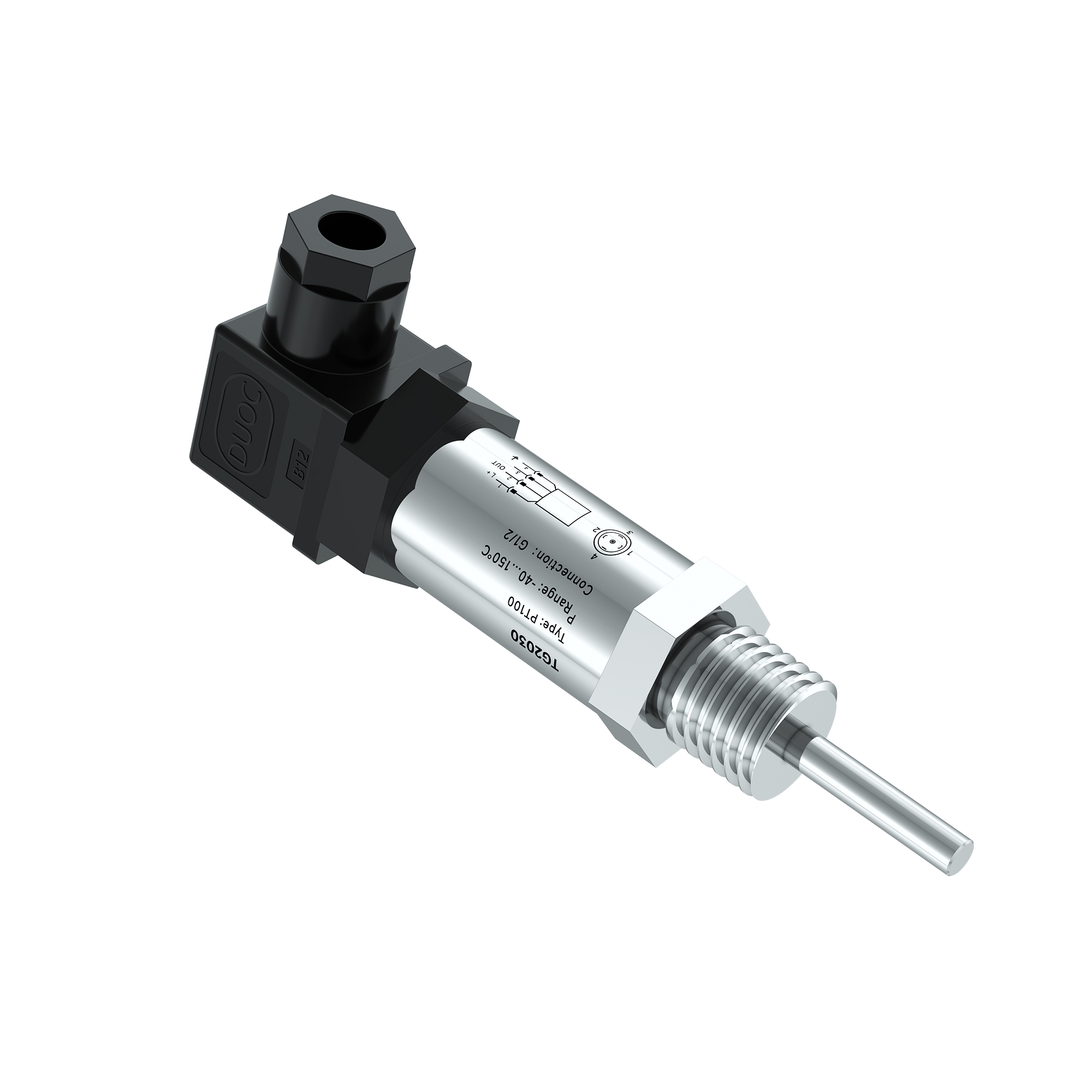

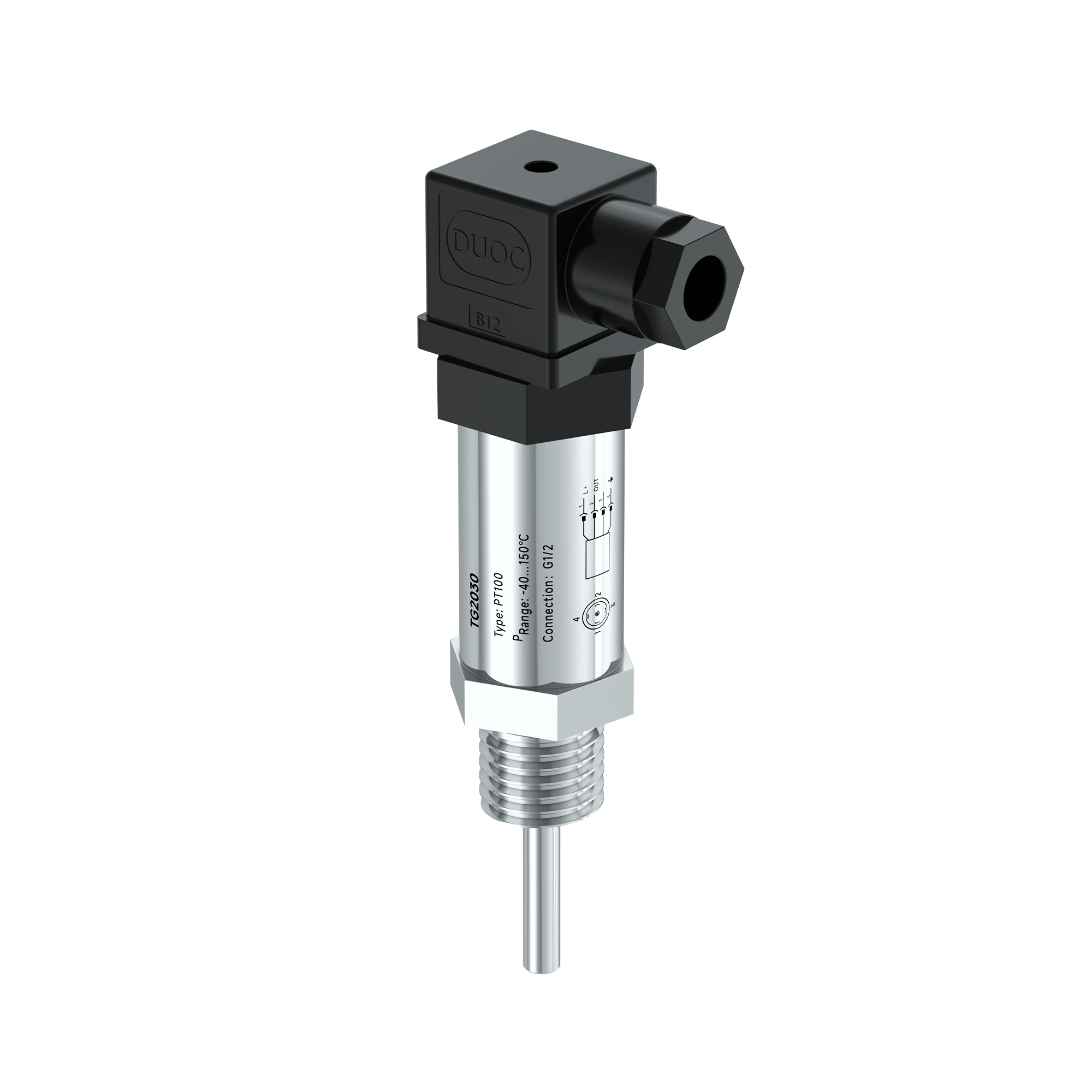

Temperature sensor
TG2030
- Clamp-on solution reduces installation costs and effort
- Suitable for sanitary areas
- Fast response and high measurement accuracy
- Fast, precise, and non-intrusive
Market price：¥520.00
Your price：Please log in
Compare
Technical Parameters
Download
More Information
Technical data
Dimensions
Wiring Diagram
Product characteristics
| Measuring range | -40...150 °C -40...302 °F |
|---|---|
| Process connection | G 1/2 external thread |
Application
| Measuring element | 1 x Pt 100 |
|---|---|
| Media | liquid and gaseous media |
| Compressive Strength [bar] | 100 |
| Probe Length [mm] | 30 |
Electrical connection
| Connection | Hirschmann interface |
|---|
Measuring/setting range
| measuring Range | -40...150 °C -40...302 °F |
|---|
Operating conditions
| Ambient Temperature [°C] | -25...80 |
|---|---|
| Storage temperature[°C] | -40...100 |
| Enclosure Protection Rating | IP 68; IP 69K |
Mechanical data
| Weight [g] | 180 |
|---|---|
| Housing | Cylindrical |
| Dimensions [mm] | Ø 50.5 / L = 93.4 |
| Raw Materials | Stainless steel SS304 |
| Material (Wetted Parts) | Stainless steel SS304 |
| System Interface | G 1/2 external thread |
| Surface Characteristics of Wetted Parts Ra/Rz | Ra: < 0.8 |
Remarks
| Pack quantity | 1件 |
|---|
